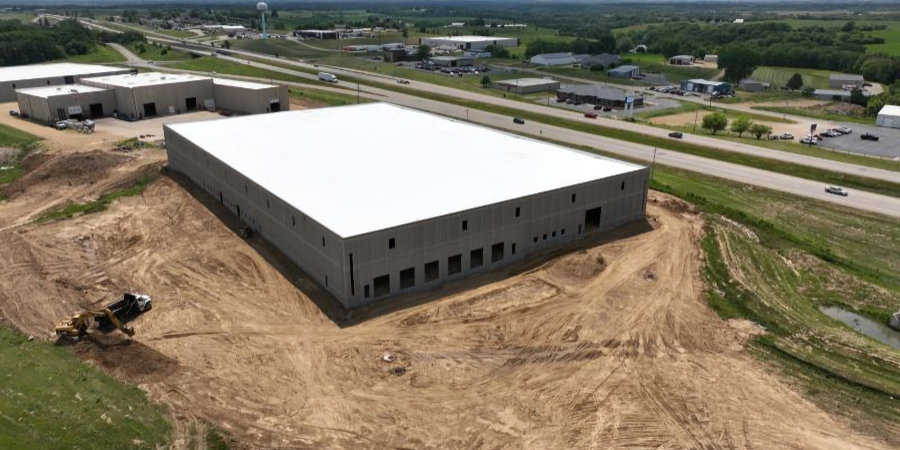

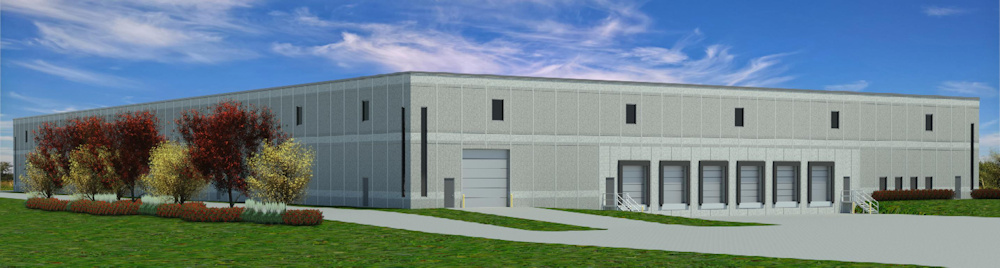

Kieler Industrial Park Spec Building
250 FT by 360 FT
To Be Completed June 2023
Precast concrete exterior wall panels
- 12” Versa Core + Green
- R-Value 28.2
Structural steel
- Bay size 50 FT by 50 FT
- 30 FT clearance to bottom of bar joist
Roof
- Polyisocyanurate insulation R-Value 30
- 60m TPO membrane welded to TPO coated plates
- 20 Year roof warranty
Sprinkler system
- 3 Wet overhead ESFR automatic fire sprinkler systems
- 1,000 GPM electric fire pump
- Tamper and flow switch monitoring 24/7
Overhead doors and dock equipment
- 12 Dock doors 10 FT by 10 FT
- 2 Drive in doors 14 FT by 14 FT
- 12 Dock levelers
- 12 Trailer restraints
- 12 Dock shelters
Concrete floor
- 5” floor with #4 rod @ 24” on center each way over poly
Walk doors
- Special-lite doors
- Panic hardware
- Electric strikes
- Card access
Security
- Contact switches on walk doors
- Contact switches on all overhead doors
- Motion sensors
- Water flow switches on sprinklers
- Tamper switches on all sprinkler valves
- Automatic cellular dialer monitored 24/7/365
Electrical
- 2,000 Amp 480/277 Volt 3 Phase service
- LED high bay fixtures
- LED Exit lights
- LED Emergency lights
- LED Exterior lighting
- LED flat panel in office and restrooms
- Option to add generator
HVAC to be designed for tenants needs
Plumbing to be designed for tenants needs
Parking lot and truck area to be designed for tenant needs
Download the Kieler Industrial Park Spec Building Brochure
